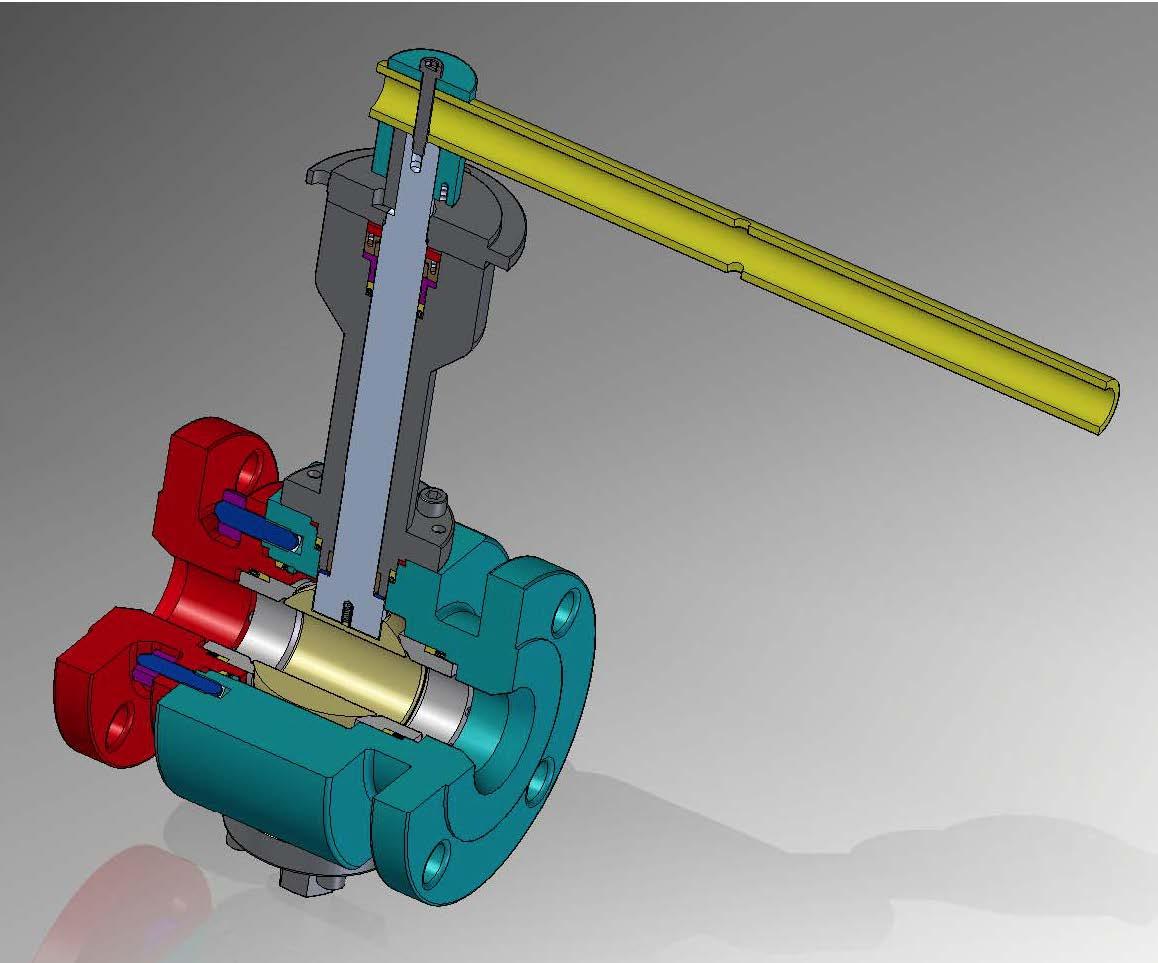

2 pieces side entry bolted body design.

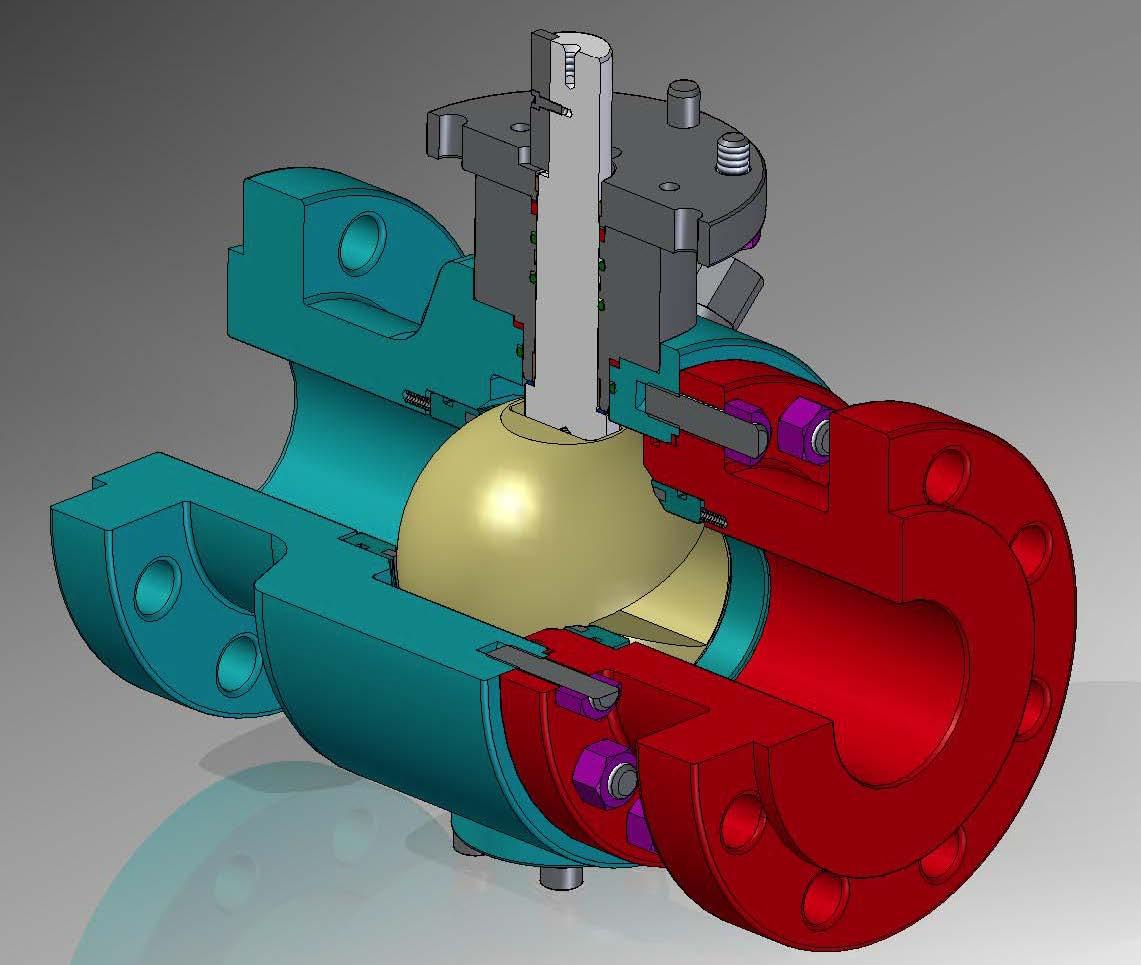

The ball of trunnion mounted configuration is supported by external trunnions bolted to the body. In such a way the pressure loads are transferred to the valve body granting a smooth rotation of the ball with low torque levels and reduced seat seal wear.
PERAR Trunnion Mounted Bolted Body Side-Entry Ball Valves represent the basic design standard.
They are manufactured in a wide range of sizes and pressure classes typically from forgings.
| Model: | EC |
| Size: | 1/2” to 3”, 1 13/16”to 3 1/8” |
| Pressure Classes: | ASME 150# to 2500#
API 6A 2000 to 15000 |
| Temperature Range: | -196°C to 400°C |
| Face to Face/ End to End: | ASME B16.10 / API 6D / API 6A / Perar Standard |
| Features | |
|---|---|
| Soft Seating | Standard |
| Metal Seating | On request |
| Self-relieving Seats (SPE x SPE) | Standard |
| Double Piston Effect Seats (DPE x DPE) | On request |
| Seat Combination (SPE x DPE) | On request |
| Vent & Drain ports | Standard |
| Emergency sealant injection | On Request for stem and body |
| Manual operated or Actuator Operated (ISO 5211) | Standard |
| Stem Extension | On request |
| Extended Bonnet | On request |
| Welded Pups | On request |
| Sealing Areas/ Wetted Areas Overlay | On request |
| FBE lining | On request |
| Conformity to NACE MR0175, NACE MR-0103 | On request |
| Conformity to PED 2014/68/UE, ATEX 2014/34/EU | On request |
| Compact Design | On request |
| V-shape ball | On request |
| Other Features | On request |
| BODY, CLOSURE | BODY SEALS / SEAT SEALS | TRIM (SEAT, BALL and STEM) | SEAT INSERT | BOLTING |
|---|---|---|---|---|
